MACHINE MAIN TECHNICAL PARAMETERS

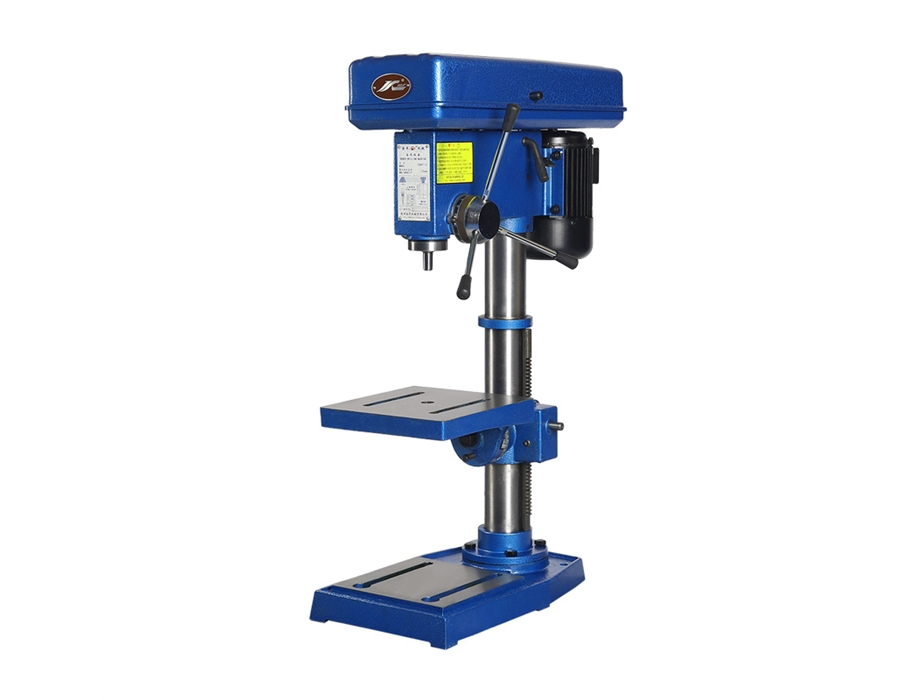

| MODEL | ZQ4113 |
| Max.Drilling Capacity | 13mm |
| Diameter of column | 70mm |
| Spindle stroke | 85mm |
| Distance spindle axis to column surface | 180mm |
| Max. distance spindle nose to worktable | 315mm |
| Max. distance spindle nose to base | 475mm |
| Spindle taper | B16 |
| Spindle speeds range | 450-2650rpm |
| Number of spindle speeds | 4 |
| Dimension of worktable surface | 240×240mm |
| Dimension of workbench surface | 220×220mm |
| Motor | 370W |
| G.W/N.W | 65/60kg |
| Ship measurement | 920×520×280mm |
