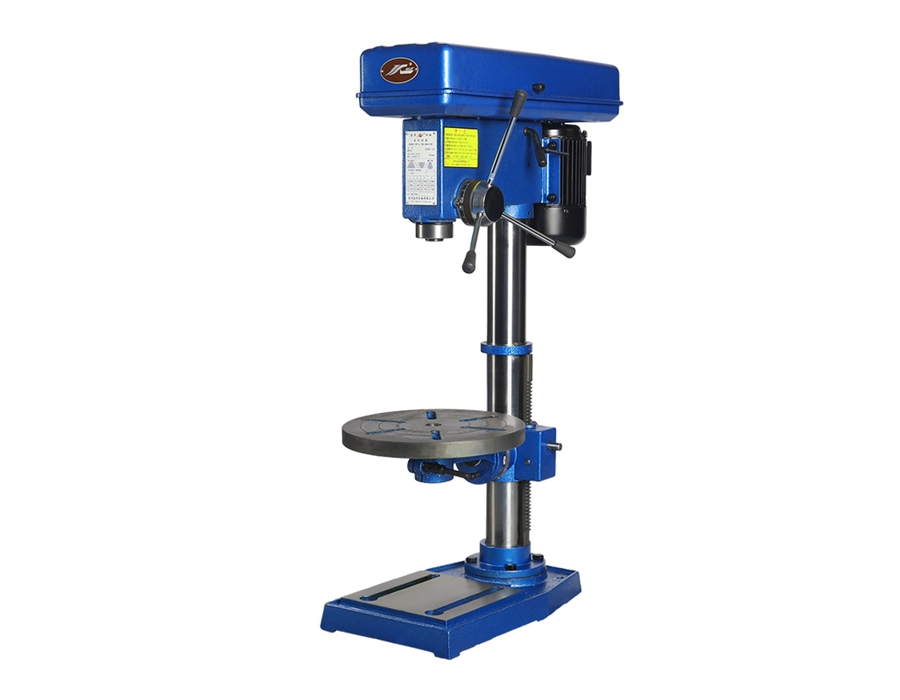

| MODEL | ZQ4119 |
| Max.Drilling Capacity | 19mm |
| Diameter of column | 70mm |
| Spindle stroke | 85mm |
| Distance spindle axis to column surface | 180mm |
| Max. distance spindle nose to worktable | 422mm |
| Max. distance spindle nose to base | 592mm |
| Spindle taper | MT.2 |
| Spindle speeds range | 270-2880rpm |
| Number of spindle speeds | 12 |
| Dimension of worktable surface | Ø300mm |
| Dimension of workbench surface | 220×220mm |
| Motor | 550W |
| G.W/N.W | 75/70kg |
| Ship measurement | 920×520×280mm |
