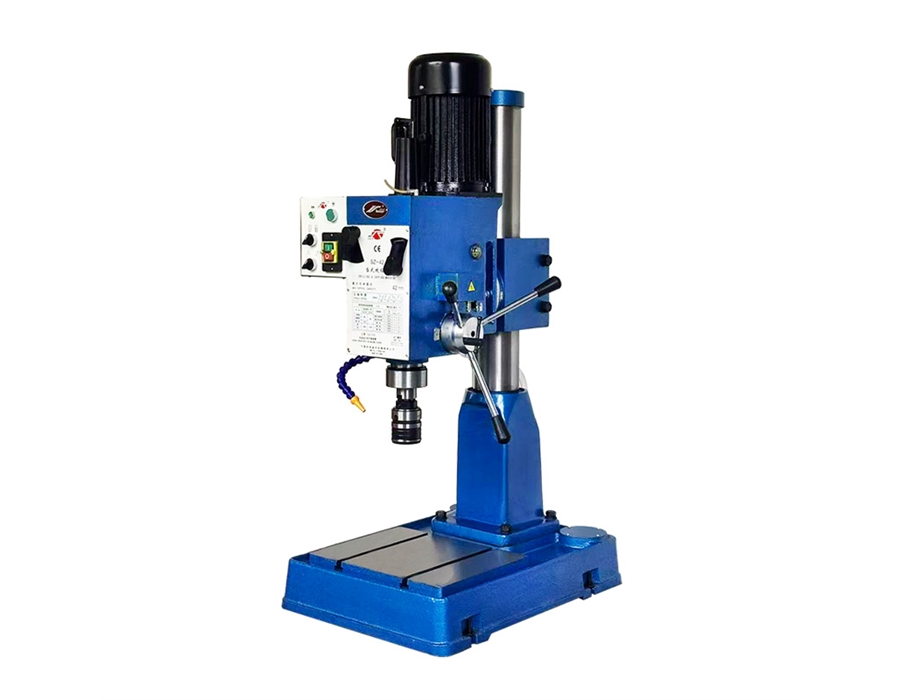

MACHINE MAIN TECHNICAL PARAMETERS
| MODEL | SZ-42 |
| Max. Tapping Capacity | M42×2 |
| Diameter of column | 115mm |
| Spindle stroke | 120mm |
| Distance spindle axis to column surface | 272.5mm |
| Max. distance spindle nose to base | 680mm |
| Spindle taper | MT.4 |
| Spindle speeds range | 60、145、300、710rpm |
| Number of spindle speeds | 4 |
| Dimension of workbench surface | 400×310mm |
| Motor | 1100W八极 |
| G.W/N.W | 270/238kg |
| Ship measurement | 850×590×1280mm |
Note: The product is equipped with a quick-change tap collet
