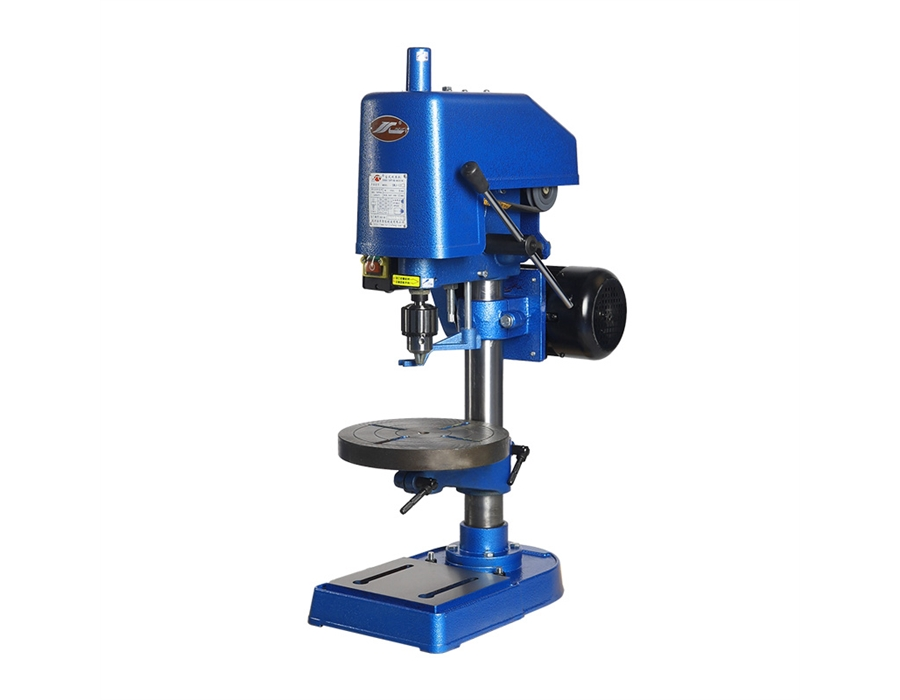

| MODEL | SWJ-6A |
| Max. Tapping Capacity | M6/M5 |
| Diameter of column | 60mm |
| Spindle stroke | 40mm |
| Distance spindle axis to column surface | 127mm |
| Max. distance spindle nose to worktable | 265mm |
| Max. distance spindle nose to base | 388mm |
| Spindle taper | B12 |
| Spindle speeds range | 正：480,850 反：580,1050 |
| Dimension of worktable surface | Ø245mm |
| Dimension of workbench surface | 166×166mm |
| Motor | 370W |
| G.W/N.W | 52/45kg |
| Ship measurement | 610×440×910mm |
Note: Model "A" features a round workbench
