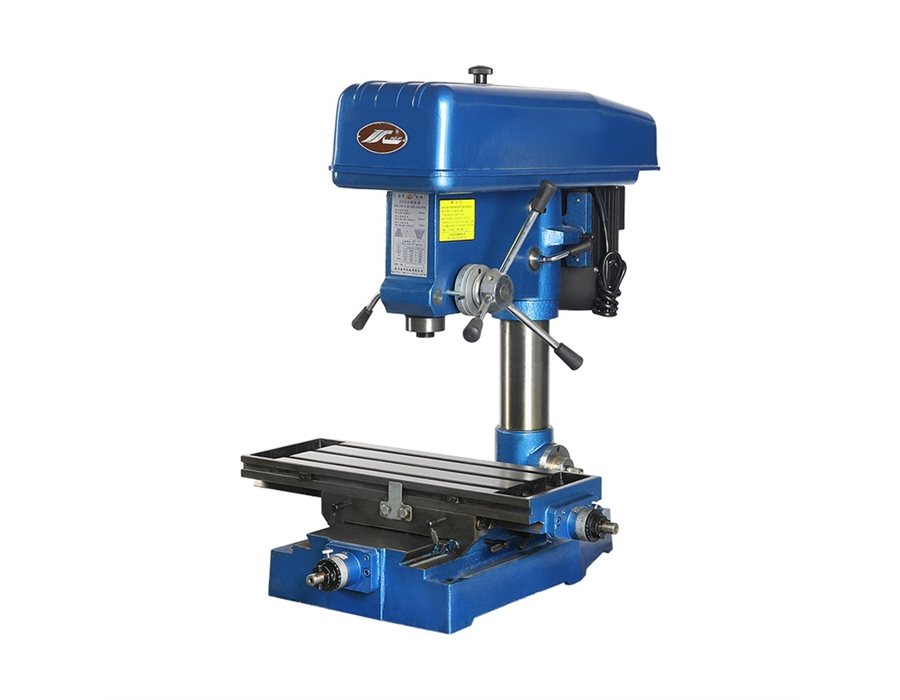

| 型 号 | MODEL | ZX7016 |
| 最大钻孔直径 | Max.Drilling Capacity | 16mm |
| 最大端铣宽度 | Max.Face mill Capacity | 85mm |
| 最大立铣宽度 | Max.End mill Capacity | 12mm |
| 立柱直径 | Diameter of column | 85mm |
| 主轴最大行程 | Spindle stroke | 115mm |
| 主轴中心线至立柱表面距离 | Distance spindle axis to column surface | 240mm |
| 主轴端至工作台最大距离 | Max. distance spindle nose to worktable | 307mm |
| 主轴锥度 | Spindle taper | MT.2 |
| 主轴转速范围 | Spindle speeds range | 235-2050rpm |
| 主轴转速级数 | Number of spindle speeds | 5 |
| 工作台面尺寸 | Dimension of worktable surface | 560×220mm |
| 工作台行程 | Dimension of workbench surface | 236×128mm |
| 电机功率 | Motor | 750W六极 |
| 毛重/净重 | G.W/N.W | 185/165kg |
| 包装尺寸﹙长×宽×高﹚ | Ship measurement | 920×710×880mm |
