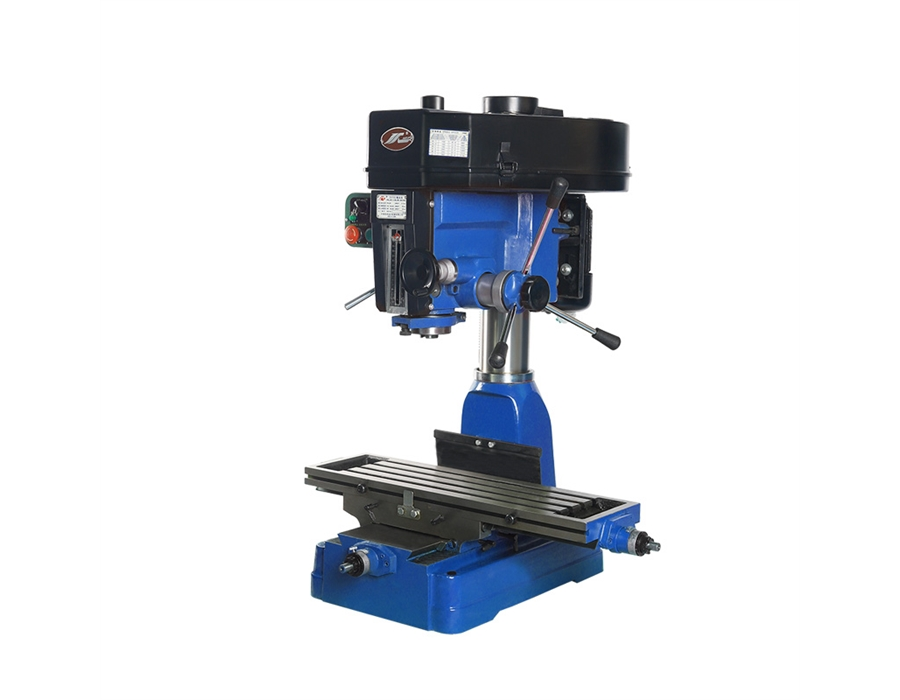

| 型 号 | MODEL | ZX7032 |
| 最大钻孔直径 | Max.Drilling Capacity | 31.5mm |
| 最大端铣宽度 | Max.Face mill Capacity | 115mm |
| 最大立铣宽度 | Max.End mill Capacity | 22mm |
| 立柱直径 | Diameter of column | 115mm |
| 主轴最大行程 | Spindle stroke | 130mm |
| 主轴中心线至立柱表面距离 | Distance spindle axis to column surface | 202mm |
| 主轴端至工作台最大距离 | Max. distance spindle nose to worktable | 460mm |
| 主轴锥度 | Spindle taper | MT.3 |
| 主轴转速范围 | Spindle speeds range | 100-2150rpm |
| 主轴转速级数 | Number of spindle speeds | 12 |
| 工作台面尺寸 | Dimension of worktable surface | 730×210mm |
| 工作台行程 | Dimension of workbench surface | 500×175mm |
| 电机功率 | Motor | 1500W |
| 毛重/净重 | G.W/N.W | 287/249kg |
| 包装尺寸﹙长×宽×高﹚ | Ship measurement | 860×820×1150mm |
