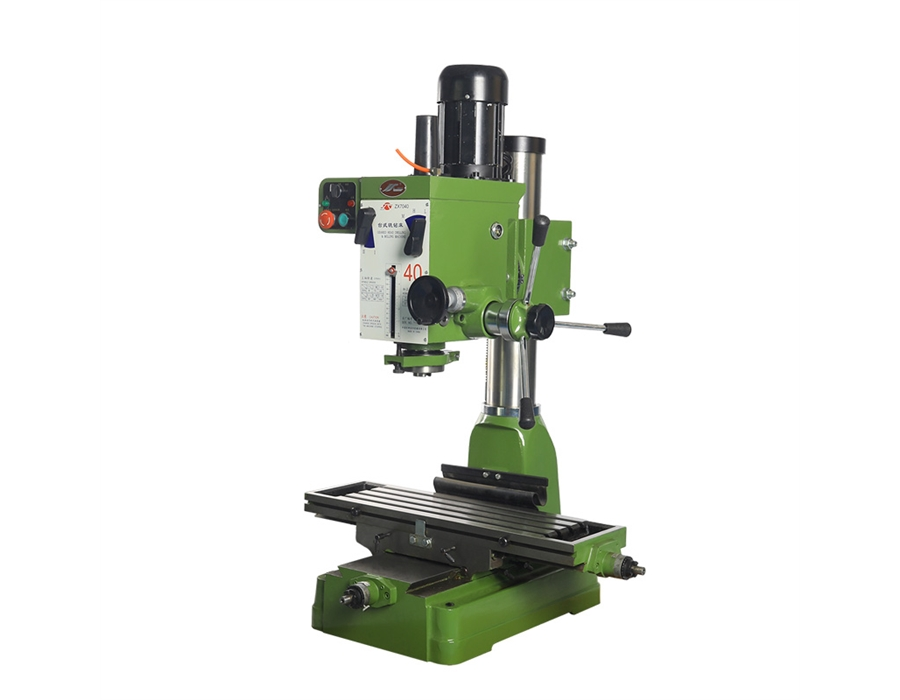

| 型 号 | MODEL | ZX7040 |
| 最大钻孔直径 | Max.Drilling Capacity | 45mm |
| 最大端铣宽度 | Max.Face mill Capacity | 115mm |
| 最大立铣宽度 | Max.End mill Capacity | 28mm |
| 立柱直径 | Diameter of column | 115mm |
| 主轴最大行程 | Spindle stroke | 120mm |
| 主轴中心线至立柱表面距离 | Distance spindle axis to column surface | 272.5mm |
| 主轴端至工作台最大距离 | Max. distance spindle nose to worktable | 450mm |
| 主轴锥度 | Spindle taper | MT.3 |
| 主轴转速范围 | Spindle speeds range | 95-1600rpm |
| 主轴转速级数 | Number of spindle speeds | 6 |
| 工作台面尺寸 | Dimension of worktable surface | 730×210mm |
| 工作台行程 | Dimension of workbench surface | 500×175mm |
| 电机功率 | Motor | 750W |
| 毛重/净重 | G.W/N.W | 288/250kg |
| 包装尺寸﹙长×宽×高﹚ | Ship measurement | 880×780×1150mm |
